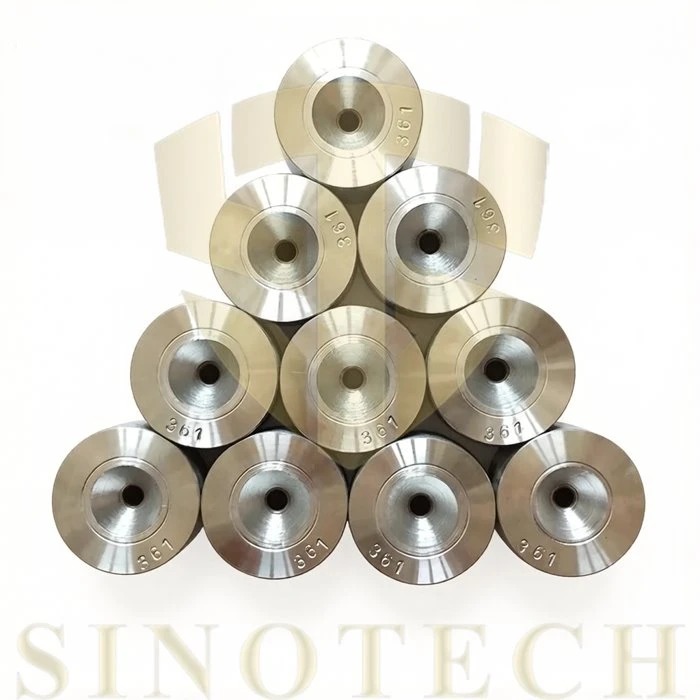

Dies for Wire Drawing

The quality of a wire drawing process depends largely on the performance of the drawing die. Dies for wire drawing are precision tooling components designed to reduce wire diameter while maintaining excellent dimensional accuracy, surface finish, and mechanical properties. Selecting the appropriate die material and geometry is essential for achieving consistent production, reducing downtime, and extending tooling life. Our wire drawing dies are available in a variety of configurations, including tungsten carbide wire drawing inserts, multiwire elongation die set, wire drawing elongation die set, and diamond wire drawing die solutions. These products are engineered for both single-wire and multi-wire drawing applications, meeting the demands of modern wire processing industries.

Each drawing die is manufactured with strict dimensional tolerances and polished bearing surfaces to ensure smooth metal flow through the die. The optimized reduction angle, bearing length, and exit geometry help lower drawing resistance while minimizing friction and heat generation. This contributes to improved wire roundness, tighter diameter control, and a superior surface finish.

Different die materials are selected according to the wire material, drawing speed, and production volume. Tungsten carbide inserts provide excellent wear resistance for general steel wire production, while diamond-based dies offer exceptional hardness and accuracy for fine wire drawing, non-ferrous metals, and high-speed applications. Multi-stage elongation die sets are carefully matched to maintain uniform deformation throughout the drawing process, improving wire strength and reducing the risk of breakage.

Every die undergoes precision inspection before delivery to ensure stable performance and long service life. Custom die sizes, reduction schedules, and special bore profiles can also be manufactured to meet specific production requirements.

Our dies for wire drawing are widely used in the production of wire drawing machines
