Wire Welded Coil Nail Machine

Welded coil nail machine with integrated welding, painting and drying

The wire welded coil nail machine is an advanced automatic production system designed for manufacturers who require continuous welding, coating, and coiling processes for high-quality wire collated nails. Different from conventional coil nail equipment that focuses mainly on nail arrangement, this machine integrates nail feeding, wire welding, surface painting, drying, and coil winding into one complete production solution.With a production range of wire diameter 1.8–4.1 mm and nail length 25–100 mm, this equipment is suitable for producing various industrial coil nails.

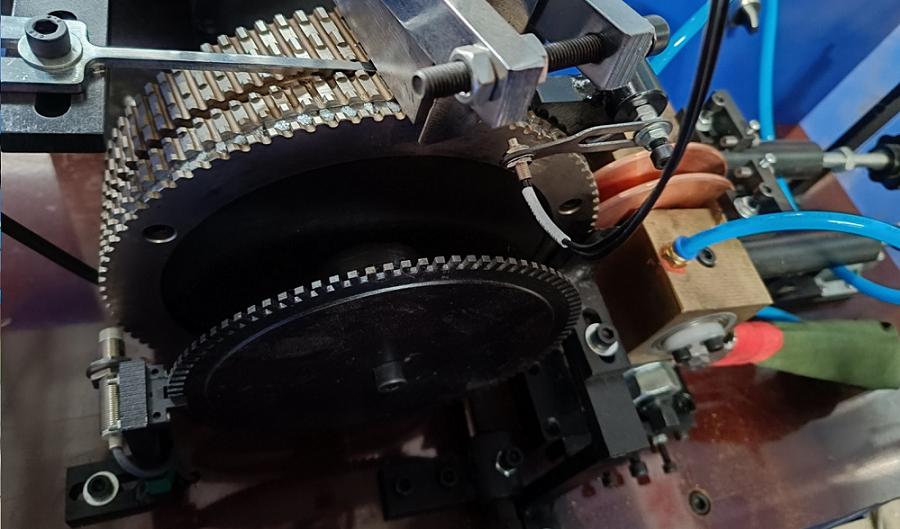

One of the major advantages of this coil nail welding machine is its continuous production design. After the nails are accurately positioned and welded with steel wire, the finished nail coils can directly enter the painting and drying process inside the machine.This integrated structure eliminates additional handling between welding and coating procedures, improving production efficiency while ensuring uniform paint coverage and stable product appearance.The built-in drying system helps accelerate coating solidification, making the finished coil nails cleaner, stronger, and more suitable for long-term storage and export transportation.

The machine is equipped with a 750 mm diameter vibration feeding bowl, which provides continuous and organized nail supply. The automatic feeding system ensures stable nail positioning before welding, reducing empty feeding, misalignment, and production interruptions.

According to different nail sizes, the production speed can reach:

• 1200–1600 PCS/min for nail lengths of 75–83 mm
• 1600–2000 PCS/min for nail lengths below 70 mm

This makes the machine especially suitable for factories requiring high-volume production and consistent output quality. The equipment also includes a vertical wire pay-off device and wire rack assembly, providing smooth wire feeding during continuous operation and improving welding stability.

To meet different customer requirements, the coil winding system allows flexible adjustment of finished coil specifications. The adjustable range includes: Nail length: 25–100 mm, Nails per coil: 1–9000 PCS

This function enables manufacturers to produce different coil sizes for various pneumatic nail gun applications, reducing the need for multiple machines and improving production flexibility.

The wire collated coil nail welding machine adopts reliable electrical components to ensure stable long-term operation. The total machine power is approximately 6 kw, with a net weight of 1100 kg, providing a compact but robust structure suitable for modern nail manufacturing workshops.

It is also an ideal choice for manufacturers producing fencing coil nail making machine products where stable welding strength and reliable feeding performance are required.

With high-speed welding performance, integrated coating treatment, flexible winding control, and reliable industrial components, this wire welded coil nail machine provides an efficient solution for factories upgrading their coil nail production capability. It combines automation, stability, and production flexibility to support modern fastener manufacturers competing in global markets.
