Rectify Wire Drawing Die Machine

Carbide wire drawing die sizing machine

The rectify wire drawing die machine for precision sizing and bearing calibration of tungsten carbide wire drawing dies. Fully automatic plc control, high machining accuracy, and suitable for die diameters from 0.125 mm to 5.5 mm.

Automatic rectify wire drawing die machine for precision die sizing

The rectify wire drawing die machine is a professional solution developed for precision machining of the bearing (sizing) section of tungsten carbide wire drawing dies. It is widely used by wire drawing die manufacturers, die refurbishment centers, and wire processing factories to restore worn dies, improve dimensional accuracy, and extend die service life.

Unlike machines designed for polishing the inlet and outlet cone, this machine focuses on bearing calibration and sizing accuracy, ensuring the finished wire maintains stable diameter tolerance and excellent surface quality during the drawing process. The sizing section is one of the most critical areas inside a wire drawing die, directly influencing wire dimensional consistency, drawing force, lubrication performance, and die lifespan.As the latest generation of carbide wire drawing die sizing machine, this equipment offers higher automation, improved machining precision, and greater production efficiency than conventional die sizing equipment. Its advanced control system automatically adjusts machining parameters according to the required sizing diameter, minimizing manual intervention while achieving highly repeatable processing results.The machine is capable of machining carbide die bearing diameters from 0.125 mm up to 5.5 mm, making it suitable for fine wire production as well as general industrial wire drawing applications. It accommodates mold sleeve outer diameters φ28 mm and φ42 mm, covering most standard tungsten carbide wire drawing dies used throughout the wire industry.

Equipped with a fully automatic PLC control system and an intuitive operating interface,It enables fast parameter adjustment, simplified process management, and stable machining quality. Operators can easily modify processing parameters for different die specifications, resulting in a high qualification rate and reduced dependence on operator experience.Its compact machine structure occupies minimal workshop space while delivering outstanding sizing accuracy and long-term operational reliability, making it an economical choice for manufacturers seeking consistent die refurbishment quality.

Specially designed for carbide wire drawing die sizing, High machining efficiency and excellent repeatability, High qualification rate after die repair

The quality of the bearing section determines the performance of every wire drawing die. The machine provides an efficient and highly accurate solution for restoring worn sizing areas while maintaining excellent dimensional consistency. Compared with manual sizing methods, automatic plc control significantly improves production efficiency, reduces human error, and delivers a much higher repair success rate.

With its intelligent parameter adjustment, compact design, and stable machining performance, it helps manufacturers reduce tooling costs, improve wire quality, and maximize the service life of valuable tungsten carbide drawing dies.

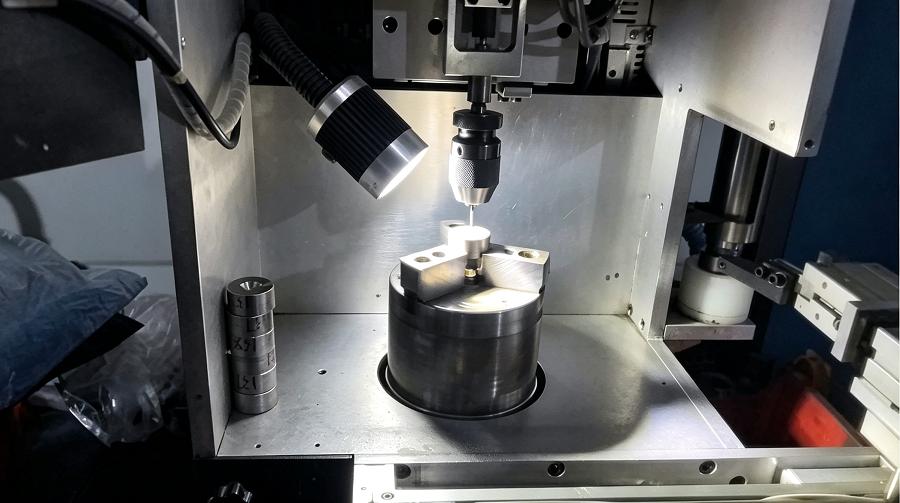

The machine is specifically designed for machining and calibrating the bearing (sizing) section of tungsten carbide wire drawing dies. The fully automatic plc system allows operators to quickly set different machining parameters according to the required die diameter,
The machine provides higher precision, better consistency, improved processing efficiency, and a significantly higher qualification rate for repaired wire drawing dies.
