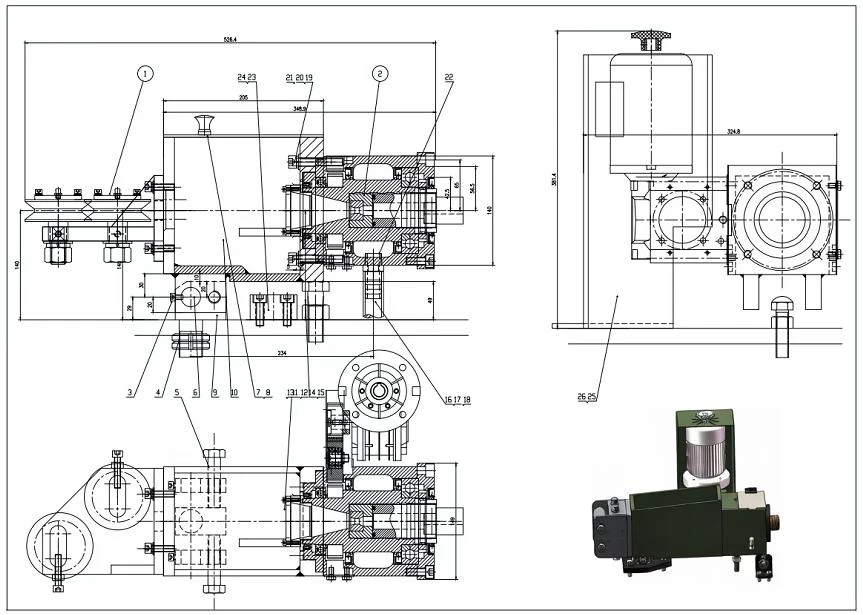

Driven Drawing Die Holder

The driven drawing die holder is a precision-engineered component used in modern dry wire drawing machines to improve wire surface quality, extend die life, and ensure stable drawing performance. Unlike conventional fixed die holders, this rotating design allows the drawing die to rotate continuously during operation, distributing friction evenly around the die bore and reducing localized wear.Also known as a dry wire drawing rotating die holder, dry wire drawing rotating die unit, or dry wire drawing rotating die box, this equipment is widely used in carbon steel wire, stainless steel wire, welding wire, spring wire, galvanized wire, and alloy wire production lines.

The rotating mechanism minimizes heat accumulation between the wire and the drawing die. As the die rotates, contact points constantly change, allowing lubricant to spread more uniformly and preventing excessive wear in one direction. This significantly improves wire dimensional accuracy while maintaining a smoother wire surface throughout long production runs.Manufactured from high-strength alloy steel with precision machining, the die holder offers excellent rigidity and durability under continuous heavy-duty operation. High-quality bearings and balanced rotating assemblies ensure low vibration and stable performance even at high drawing speeds.

The holder is compatible with tungsten carbide, PCD, and natural diamond drawing dies, making it suitable for a wide range of wire diameters and production requirements. Various mounting dimensions can be customized to match different wire drawing machines.

Continuous die rotation reduces uneven wear, Improves drawing stability at high speeds, Extends drawing die service life, Reduces wire scratching and surface defects, Compatible with various die materials, Precision bearing structure for smooth operation, Easy installation and maintenance, Available in customized sizes. Driven drawing die holders are commonly installed in dry wire drawing machines.

By maintaining consistent drawing conditions, the rotating die holder helps manufacturers reduce maintenance frequency, lower tooling costs, and achieve higher production efficiency. It is an ideal upgrade for wire drawing plants seeking longer die life and improved product quality while minimizing production downtime.
