Wire Coil Nail Collator
Wire Coil Nail Machine
Model: STI-JDJ-B
Production Speed: ≤2000PCS/min
Motor Power: 5.5Kw
Nail Size: 1.8*25 - 4.0*100mm
Description
Wire coil nail machine
High-speed wire coil nail collator for stable and efficient coil nail production
Product overview
The wire coil nail collator is designed for manufacturers seeking reliable, high-speed production of wire-collated coil nails used in construction, pallet assembly, fencing, siding, and industrial fastening applications. Combining automatic nail feeding, precision positioning, wire welding, and vinyl coating in one integrated process, this wire coil nail collator machine delivers consistent coil quality while reducing labor costs and production downtime.It serves both medium and large-scale factories requiring flexible production across multiple nail specifications.
Designed for flexible coil nail manufacturing
Unlike conventional equipment limited to a single product size, this coil nail collator supports various nail dimensions through quick replacement of collating wheels and welding bands. Different shank types, including flat and conical styles, can also be produced on one machine with an optional conversion unit, allowing manufacturers to respond quickly to changing market demands. For customers producing export products, an optional jumbo coil configuration enables the production of approximately 3,000 nails per coil while maintaining the standard 15-degree wire collation angle widely accepted by international pneumatic nail gun manufacturers.

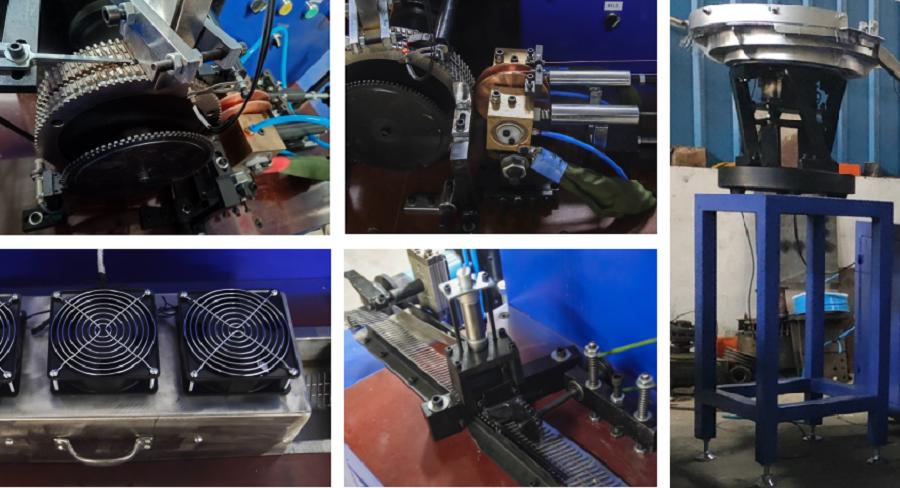

Key features
- High production speed from 800 to 2000 nails per minute
- Automatic vinyl application system with integrated drying fan
- Precision wire welding for uniform coil geometry
- Optional flat and cone shank production on one machine
- Intelligent jam detection for continuous production
- Fault ejection system to reduce manual intervention
- Easy replacement of collating wheels for multiple nail sizes
- Compatible with future production expansion
To further improve automation, the machine can be equipped with an optional magnetic nail feeding machine (STI-CTS-20). This feeder automatically lifts 15–25 kg of nails per cycle with a swing speed of 5–6 times per minute, significantly reducing manual loading while ensuring stable material supply to the collating line.
Reliable performance for industrial production
The automatic nail coiling machine integrates an 8 kw main drive, 0.75 kw nail feeding system, and 20 kw welding system delivering 1000–2000 a welding current for secure wire attachment. The complete production process minimizes welding defects while maintaining accurate coil alignment suitable for pneumatic nail tools.
Applications
The collating nails machine is widely used for manufacturing: Wire collated framing nails, Pallet assembly nails, Wood packaging nails, Construction fastening nails, Export-standard 15°wire coil nails, Collated siding nail making machine products, Wire collated iron nail making machine production lines
Its flexible configuration makes the nail collator machine suitable for factories upgrading existing nail production or building new automated coil nail manufacturing facilities.
Whether expanding capacity or improving product consistency, our wire coil nail collator, automatic nail coiling machine, and coil nail collating machine provide a dependable solution for modern nail manufacturing. Contact us to receive customized configurations, tooling recommendations, and complete production line solutions tailored to your nail specifications.
