Scaffold Nail Machine
Scaffold Nail Machine
Model: STI-ZD94-4.5D/br
Nail Diameter Range：2.8*50-4.8*100 mm
Power Supply：380V/50Hz or Customized
Production Speed：≤160 pcs/min
Description
Scaffold Nail Machine - for heavy-duty scaffold nails produce
Description
The scaffold nail machine is engineered for manufacturing scaffold nails used in construction support systems, scaffolding assembly and temporary structural installations.
Although based on the same proven platform used for duplex nail production, this machine configuration is optimized specifically for construction contractors and fastener manufacturers serving the scaffolding industry.
Designed for scaffold fastener applications
The machine produces heavy-duty scaffold nails, for Temporary & Structural Fixing, commonly used in:
Scaffolding Systems
Ideal for fixing wooden planks, beams, and toe boards. The umbrella head design provides a large bearing surface for stability, while allowing for quick disassembly once the construction project is completed.
Concrete Formwork
Perfect for securing timber molds used in pouring concrete. Once the concrete has cured and the formwork is no longer needed, these nails can be easily extracted without damaging the mold or the concrete surface.
Temporary Supports & Staging
Essential for securely fastening temporary structures, theatrical scenery, and stage platforms during setup.
They ensure structural integrity during use and allow for rapid removal during the tear down process.
These fasteners require high strength, reliable head formation and stable shank dimensions to ensure safety during field operation.
Stable production for large diameter nails
The machine supports wire diameters from 2.8 mm to 4.8 mm and nail lengths from 50 mm to 100 mm, making it suitable for producing structural fasteners used in demanding construction environments.
As a professional scaffold nail making machine, it provides excellent dimensional consistency and repeatable product quality.

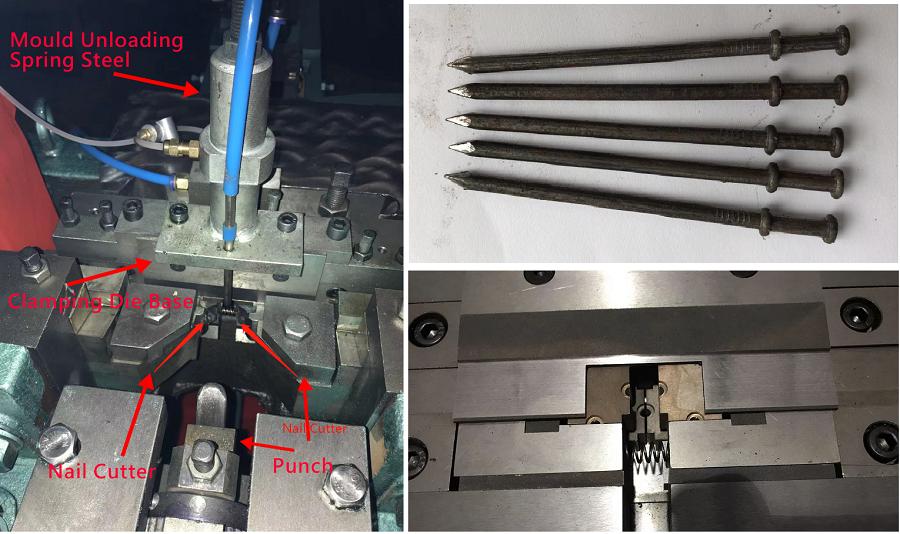

Reinforced mechanical design
Several engineering improvements contribute to machine durability:
- Rolling bearings on crankshaft and side shaft
- Large flywheel for smoother torque transmission
- High-strength alloy transmission components
- Optimized clamping cam design
- Reduced operating noise
These features ensure stable long-term operation even under continuous production schedules.
Reliable wire feeding accuracy
The dual-roller clamping mechanism combined with hard alloy guiding surfaces improves feeding precision and minimizes dimensional variation between batches.
This is especially important for scaffold fasteners where installation consistency directly affects construction safety.
Built for Construction Fastener Manufacturers
The scaffold nail machine provides a dependable solution for producers supplying scaffold systems, infrastructure projects and industrial construction markets worldwide.
