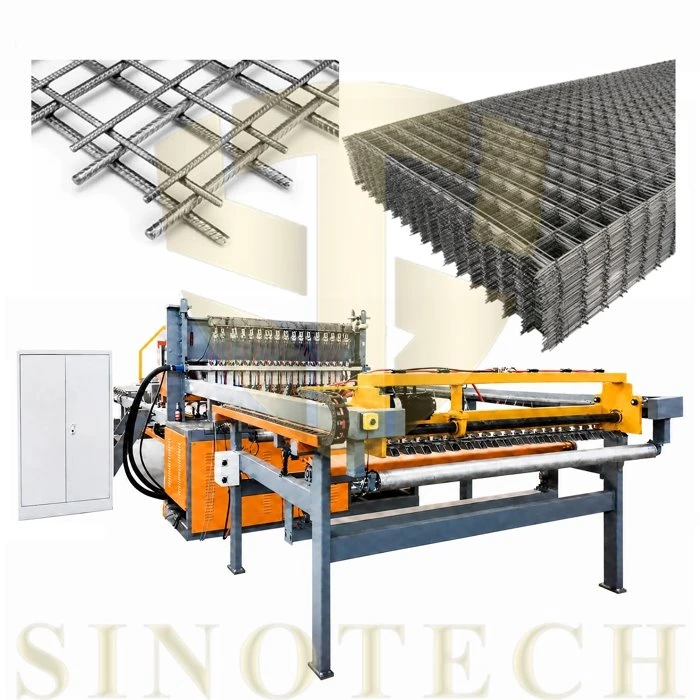

Welded Wire Mesh Machine

Heavy-duty welded rebar mesh machine for reinforcement mesh production

The welded wire mesh machine is a fully automatic welding system designed for manufacturing heavy-duty steel/rebar mesh panels used in construction, infrastructure, precast concrete, highways, bridges. Built for processing large-diameter reinforcing bars, the machine combines intelligent plc control, servo-driven indexing, and high-capacity welding transformers to deliver exceptional productivity and consistent welding quality. Unlike light-duty mesh welding equipment designed for wire rolls, this automatic welded wire mesh machine produces rigid steel mesh panels with precise spacing and strong weld integrity. It is an ideal production solution for manufacturers supplying reinforcement mesh, concrete mesh, welded fence panels, and structural steel grids. With its modular design and customizable configuration, the machine can be integrated into modern automated production lines to meet demanding industrial manufacturing requirements.

The machine utilizes an advanced plc control system combined with servo-driven mesh pulling technology, allowing precise adjustment of wire spacing directly from the touch screen without replacing mechanical components.The welding system employs twelve high-efficiency water-cooled transformers that provide stable current output for continuous heavy-duty operation. Specially designed square welding electrodes ensure excellent contact with reinforcing bars while extending electrode service life.

Key features include:

Panasonic PLC with intelligent touch-screen operation, Servo-controlled automatic mesh pulling system, Twelve water-cooled welding transformers, High-strength square welding electrodes, Automatic longitudinal wire feeding, Stepper-controlled cross wire positioning, Stable gearbox-driven transmission system, High-speed continuous panel production, Built for structural reinforcement applications

This rebar steel wire mesh welding machine is specifically developed for manufacturing large-format welded panels that meet the strict dimensional requirements of modern construction projects.

The machine accurately controls both longitudinal and transverse wire spacing, producing uniform mesh suitable for reinforced concrete structures. Optional automatic panel discharge systems further improve production efficiency while reducing manual handling.

Its robust mechanical frame, industrial electrical components, and reliable welding system ensure stable performance during continuous production shifts.

The welded wire mesh machine is widely used to manufacture: Reinforcement steel mesh panels, Welded concrete mesh, Rebar reinforcement mesh, Construction floor mesh, Bridge reinforcement panels, Highway reinforcement mesh, Welded fence panels, Brick force reinforcement mesh, Tunnel support mesh, Industrial steel grid panels. It is widely adopted by construction material manufacturers, precast concrete factories, infrastructure contractors, and steel fabrication companies.

The machine is engineered for demanding industrial production where accuracy, welding strength, and long-term reliability are essential. Compared with conventional manual welding methods, the automated production process significantly improves productivity while maintaining consistent weld quality across every panel.Premium electrical components, including Panasonic servo drives, Schneider low-voltage electrical devices, delta frequency inverters, and industrial touch-screen controls, contribute to dependable operation and simplified maintenance.

Manufacturers can also customize the machine according to panel dimensions, reinforcement specifications, and factory layout, creating a production solution tailored to individual project requirements.
