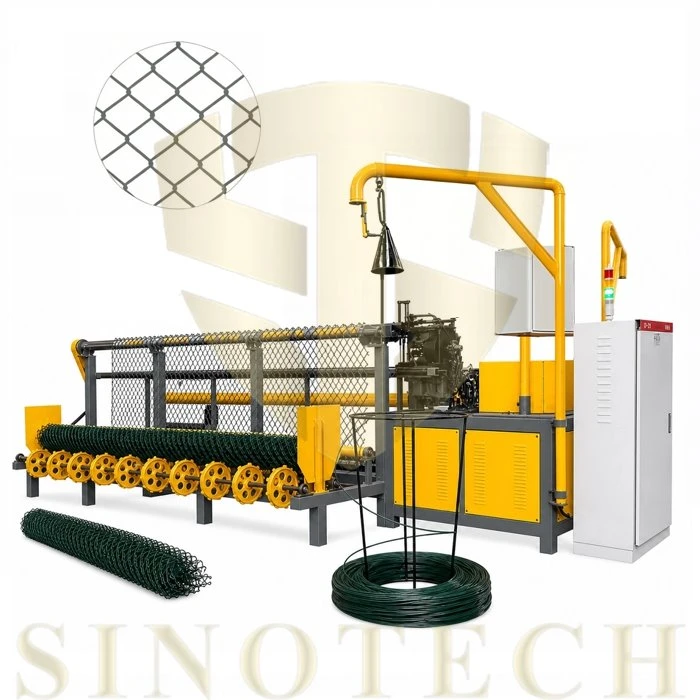

Chain Link Mesh Machine
Chain Link Mesh Machine
Model: STI-SCL-2000
Mesh width: ≤2000 mm
Wire diameter: 1.0–5.0 mm
Production capacity: 60–120 m²/h
Description
Chain link mesh machine
For diamond wire mesh manufacturing
Product overview
The chain link mesh machine is an efficient and compact solution for producing diamond-shaped wire mesh rolls for fencing, agriculture, sports facilities, and industrial protection. Designed with automatic wire feeding, weaving, edge locking, and roll shrinking functions, the machine completes the entire production process with minimal operator intervention. It is suitable for processing galvanized wire, PVC-coated wire, stainless steel wire, high-carbon steel wire, and copper wire.Unlike large dual-wire production systems, this cyclone chain link mesh machine focuses on flexible manufacturing with fast setup, easy operation, and economical production costs. By simply replacing the forming mold, manufacturers can quickly switch between different mesh openings to satisfy diverse market demands.
Compact design with fully automated operation

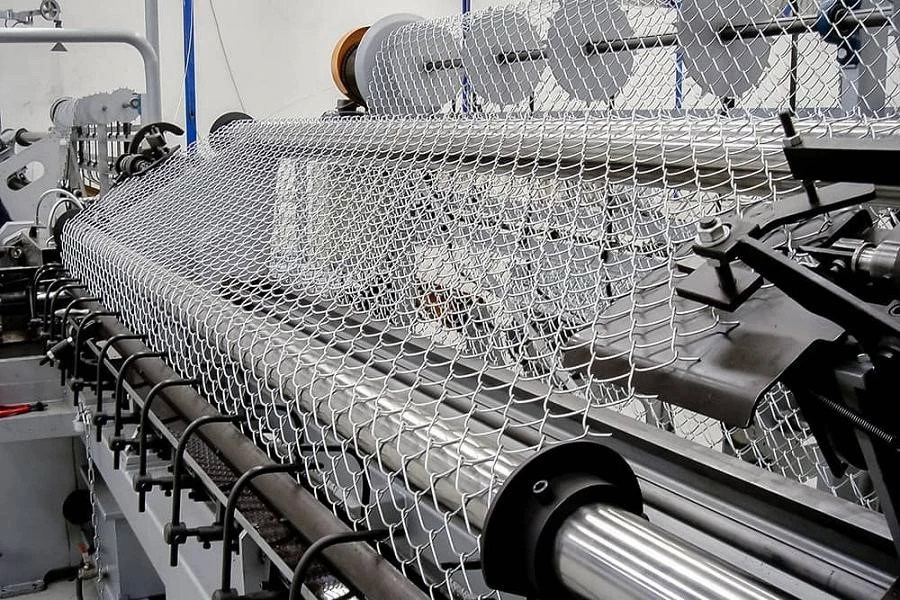

The machine consists of three integrated units: A knitting machine, an edge locking machine, and a mesh roll shrinking system. Each stage operates automatically under plc control, ensuring stable production and reducing manual handling. The servo-driven main motor provides smooth and accurate weaving, while dedicated motors control edge processing, cutting, and finished roll collection. The result is a uniform diamond mesh with clean edges and consistent dimensions.
Key advantages include:
Fully automatic wire feeding and weaving, Integrated edge locking and roll shrinking, PLC control with adjustable production speed, Servo-driven main transmission, Quick mold replacement for various mesh sizes, Compact layout for space-saving installation, Easy operation and low maintenance requirements, Flexible production for multiple wire materials. The machine supports wire diameters from 1.0 mm to 5.0 mm and produces mesh widths from 600 mm to 2000 mm, with wider models available upon request. Three standard molds are supplied, allowing customers to manufacture common mesh openings immediately after installation.With production capacities reaching 60–120 m² per hour, the equipment is suitable for both small workshops and medium-sized fencing manufacturers seeking reliable and cost-effective production.
The chain link mesh machine is ideal for producing diamond mesh fencing, Machine components knitting unit, edge locking unit, roll shrinking unit
Frequently asked questions
1.Can one machine produce different mesh openings?
Yes. Mesh size can be adjusted by replacing the forming molds. Three standard molds are included with the machine.
2.Which wire materials are compatible?
The machine processes galvanized wire, PVC coated wire, stainless steel wire, high-carbon steel wire, copper wire, and similar materials.
3.Is the production speed adjustable?
Yes. Operators can easily adjust the weaving speed according to wire diameter and mesh specifications.
4.Can wider mesh rolls be customized?
Yes. Customized working widths are available to match individual production requirements.
Start your diamond mesh production with confidence
Our chain link mesh machine provides an economical and dependable solution for manufacturing high-quality diamond wire mesh. Contact our technical team to discuss your fencing specifications, wire materials, and production targets. We will recommend the most suitable machine configuration to help maximize productivity while ensuring consistent mesh quality.
