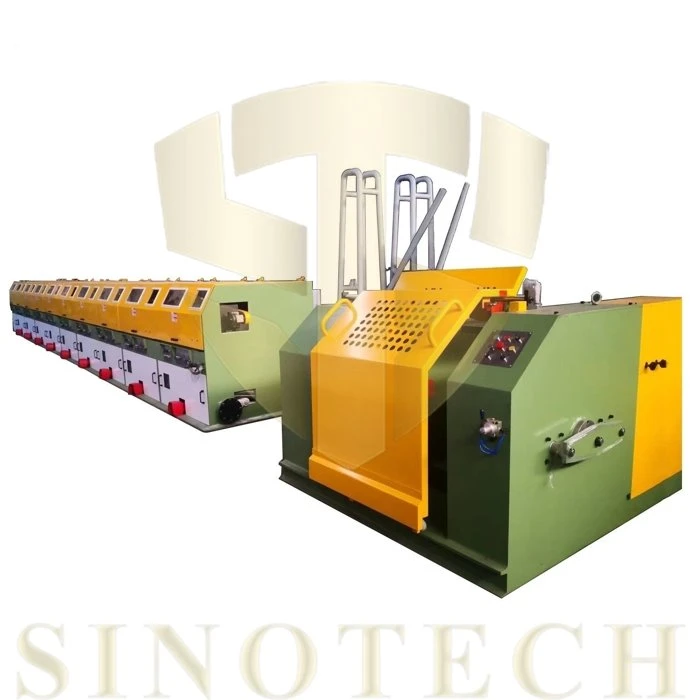

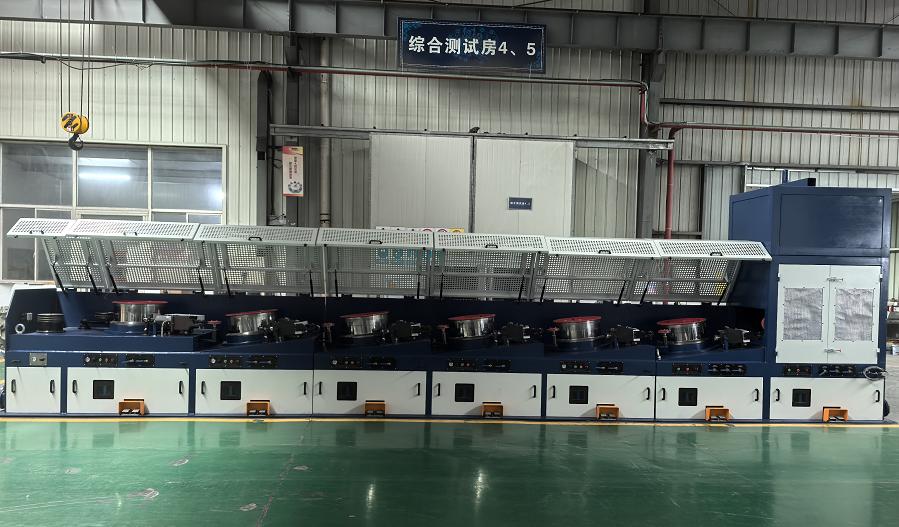

Straight Wire Drawing Machine
Straight Wire Drawing Machine
Machine Model:STI-LZ6-560
Number of Drawing Blocks: 6
Operating Speed: 12m/s (6.0-2.5mm SEA1008 Wire)
Die Boxes: Rotating Water-Cooled
Description
Straight Wire Drawing Machine for High-Speed Steel Wire Production
Product overview
The straight wire drawing machine is designed for continuous high-speed wire reduction with excellent dimensional accuracy and surface finish. The machine adopts independent permanent magnet drives on each capstan, ensuring stable wire tension and smooth operation throughout the production process.
Compared with traditional pulley systems, this straight line wire drawing machine delivers improved energy efficiency, lower maintenance requirements and superior wire quality for demanding industrial applications.
The equipment is widely used for manufacturing nail wire, mesh wire, galvanized wire, welding wire and other industrial steel wires.
Suitable wire materials
The machine supports a wide range of materials including: Low carbon steel wire rod, High carbon steel wire rod, Stainless steel wire, Bright wire and cleaned wire rod
Therefore, it can be configured as:
- Straight line bright wire drawing machine
- Straight line clean wire drawing machine
- Straight line carbon wire drawing machine
- Straight line stainless wire drawing machine
- Low carbon straight wire drawing machine
- High carbon straight wire drawing machine
Key advantages
- Independent capstan control for stable wire tension
- More than 20% lower power consumption
- Reduced die wear and longer tooling life
- Compact installation footprint
- Easy jump-die operation for flexible production
- Mechanical braking system on every block
- Suitable for continuous automatic production lines
- As a modern straight line continuous wire drawing machine, it offers higher productivity and better product consistency than conventional systems.
Standard production line configuration
Dual hydraulic pneumatic pay-off stand
Mechanical descaling unit, Abrasive belt polishing machine
Rotating water-cooled die boxes, Tungsten carbide coated capstans
Intelligent electrical control system
Elephant trunk take-up machine
Safety protection system
Optional equipment

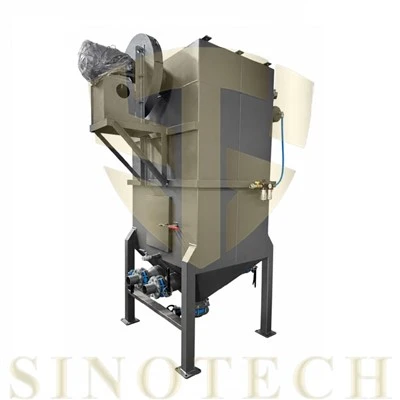

Wire pointing machine, Butt welding machine, Dust collection system, Automatic spooler, Vertical take-up machine, Annealing furnace, Zinc galvanizing line, Wire packaging machine
This is an ideal straight type wire drawing machine solution for manufacturers seeking high output, stable operation and premium wire quality.
