Coil Nail Packing Machine
Coil Nail Packing Machine
Model: STI-ACP-C2
Power consumption: 240W
Machine dimensions: 2100*2100*1450 mm
Expanding speed: 5–10 cartons/min
Description
Coil nail packing machine
For coil nail carton box automatic packing
Product overview
The coil nail packing machine is designed for fully automatic carton packing of coil nails after the nail making process. By combining conveyor feeding, carton erection, robotic nail arrangement, carton filling and carton sealing, the machine provides a reliable packaging solution for nail manufacturers seeking higher efficiency and lower labor cost. It is also suitable for applications searching for coil nails robot packing machine and robot automatic coil nail cartoning machine solutions.
Automatic robotic packing for coil nails
This machine is specially developed to handle coil nails in a stable and organized manner. The conveyor chain plate connects directly with the coil nail making machine and automatically transfers the finished nails to the packing section. The robotic packing unit then sorts, arranges and packs the coil nails into cartons according to preset quantity and layer requirements.The automatic carton opening machine prepares the cartons by erecting them and sealing the bottom with tape. After the coil nails are packed, the automatic carton sealing machine closes the carton and applies tape, creating a complete carton packing workflow.
How the coil nail packing machine works
Conveyor feeding
Transfers coil nails from the nail making machine to the packing system.
01
Automatic sorting
Organizes coil nails into the required arrangement.
02
Carton preparation
Opens and seals the bottom of cartons automatically.
03

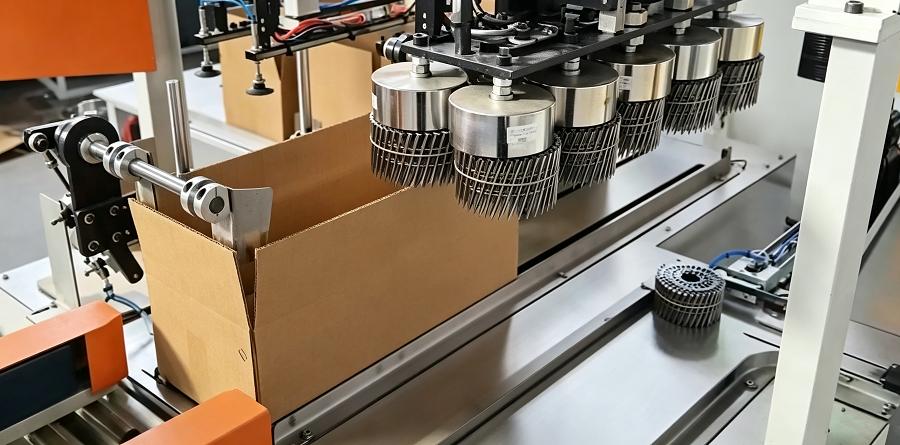

Robotic carton packing
Places sorted coil nails into cartons by preset layers and quantities.
04
Carton sealing
Seals finished cartons with tape for secure transportation.
05
Main features
Fully automatic coil nail carton packing process.
Adjustable carton size for different packaging requirements.
Flexible setting for the number of coil nails per layer and total layers.
Automatic carton erection and bottom tape sealing.
Automatic carton sealing after packing.
Designed to match the production speed of coil nail making machines.
Reduces manual handling and improves packaging consistency.
Packaging advantages
Compared with manual packing, the coil nail packing machine significantly improves packaging efficiency and reduces labor requirements. The automatic arrangement of coil nails helps maintain neat carton presentation, reduces the risk of product damage, and ensures consistent packing quality. The integrated carton opening and sealing functions further streamline the production process, making the machine suitable for continuous operation in nail manufacturing plants.
FAQ
1.Can the machine pack different coil nail quantities?
Yes. The number of coil nails per layer and the total number of layers can be set according to packaging requirements.
2.Can the carton size be adjusted?
Yes. The carton erector supports adjustable carton sizes for different packaging specifications.
3.Can the machine connect directly to a coil nail making machine?
Yes. The conveyor chain plate is designed to connect with the coil nail making machine for automatic transfer of finished coil nails.
